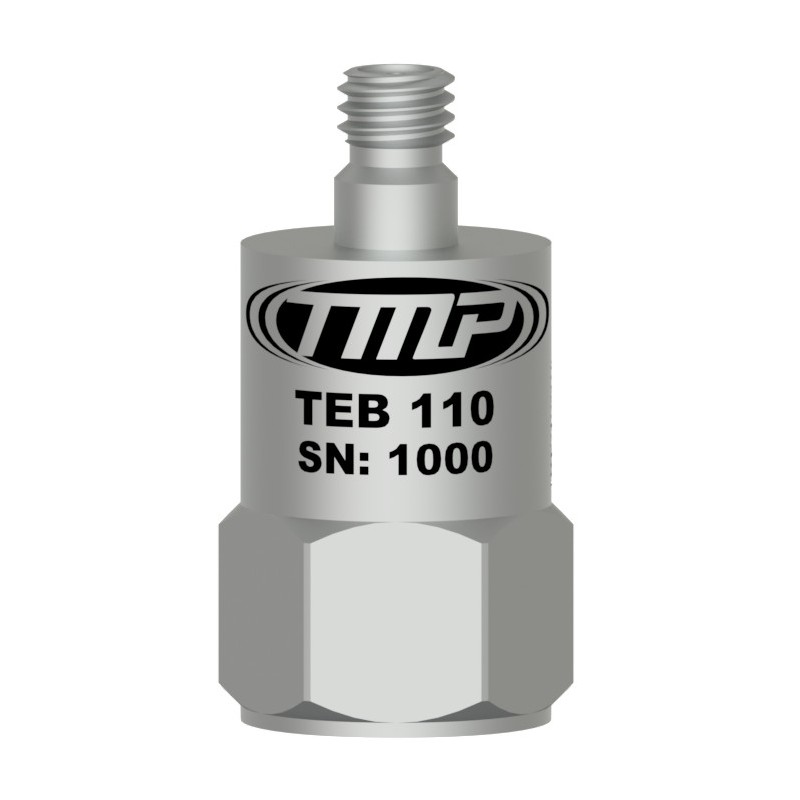

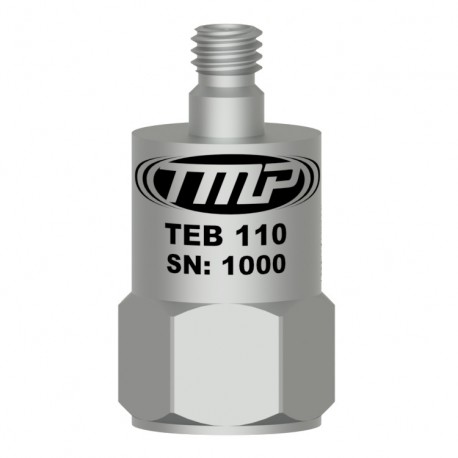

TEB110 Series Test and Measurement Accelerometer, Top Exit, 100mV/g

CTC Test and Measurement Sensors are extremely lightweight, shear mode accelerometers designed for research and development needs. PZT ceramic sensing elements are utilized to provide the highest signal to noise ratio available. The TEB110 is a 100 mV/g top exit accelerometer with a 10-32 coaxial connector. Key features • Sensitivity: 100 mV/g • Frequency Response (±3 dB): 0.5 Hz – 30 kHz

• • Dynamic Range: ±50 g, peak
• • Power Requirements Voltage Source: 18-30 VDC
• • Temperature Range: -50°C to 121°C (-58 to 250 °F)
• • Case Material: Titanium
• • Connector: 10-32
• • Max Temp: 121 °C (250 °F)
• • Weight: 10 g (.035 oz)
